Reviving a Pontiac Aztek: Custom Wheel Well Fabrication

The Pontiac Aztek, with its bold design, has a cult following, but rust can be a relentless foe, especially around the wheel wells. When we discovered the wheel wells on our Aztek had rusted away on one side and were damaged on the other, we faced a challenge: no replacement parts were available for the fully rusted side. Undeterred, we turned to creativity and resourcefulness, using universal Chevrolet truck wheel wells to fabricate replacements for one side and repairing the other with welded metal patches.

The Challenge

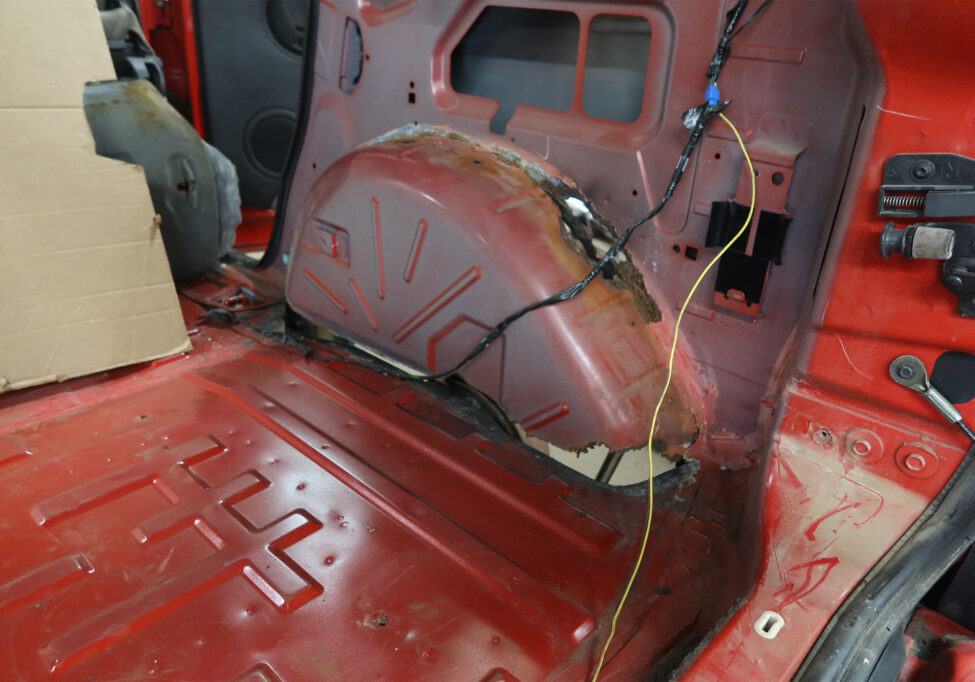

Rust had completely eaten through one of the Aztek’s wheel wells, compromising both aesthetics and structural integrity, while the other side’s wheel well was mostly intact but still showed significant rust. Sourcing OEM replacements proved impossible, as these parts are long discontinued. After some research, we found that universal wheel wells designed for Chevrolet trucks offered a promising starting point for the fully rusted side due to their size and flexibility.

IMG_7860_0010_IMG_7863

The Fabrication Process

We started by carefully measuring the Aztek’s wheel well dimensions and assessing the rust damage. The Chevrolet truck wheel wells, while not a perfect fit, provided a sturdy, corrosion-resistant base material. Here’s how we did it:

  1. Template Creation and Cutout: We crafted templates from cardboard to match the Aztek’s unique wheel well contours, using the cutout on the vehicle’s body as a precise guide for shaping.
  2. Cutting and Shaping: Using the templates and the body cutout, we cut the Chevrolet truck wheel wells to size, shaping them to follow the Aztek’s curves with a combination of metal shears and a grinder.
  3. Fitting and Welding: We test-fitted the pieces, making minor adjustments for a snug fit, then welded them into place, ensuring a seamless integration with the Aztek’s body.
  4. Finishing Touches: After sanding and priming, we applied a rust-resistant coating and painted the new wheel well to match the vehicle’s color.
IMG_7860_0011_IMG_7862

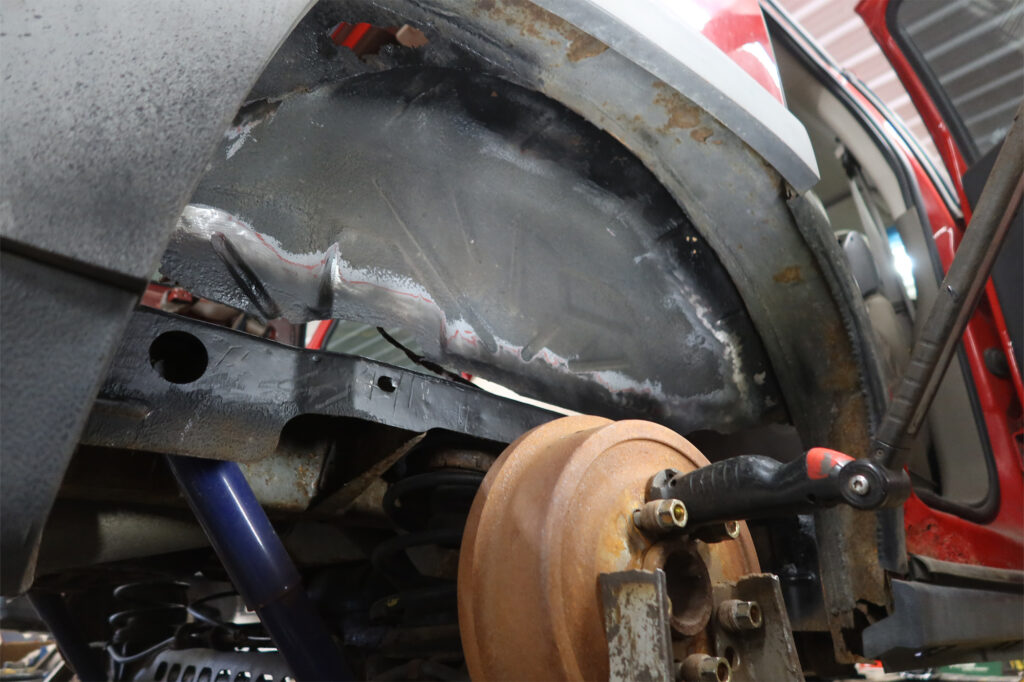

Repairing the Mostly Intact Wheel Well

On the other side, the wheel well was mostly intact, so we focused on restoration:

  1. Rust Removal: We carefully removed the rust using a wire brush and chemical rust converter to prevent further corrosion.
  2. Patching: Small holes and weakened areas were patched with metal patches, precisely cut and welded into place for a durable repair.
  3. Finishing: Like the fabricated side, we sanded, primed, applied a rust-resistant coating, and painted to match the vehicle’s body.
IMG_7860_0007_IMG_7866

The Result

The fabricated wheel well, shaped using the templates and the body’s cutout, restored the Aztek’s appearance and structural integrity on the severely rusted side, while the welded metal patches on the other side brought the mostly intact wheel well back to full functionality. The universal Chevrolet parts proved to be a versatile solution for fabrication, and the welded patches ensured a robust repair. This project was a testament to creative problem-solving—turning a seemingly impossible repair into a success.

IMG_7860_0000_Layer 1
